Home/All Parts/Bilstein/Bilstein B8 8100 Shock (25-288162) — 24.09" Ext — 2007-2014 Toyota FJ Cruiser, select trims (each)
Product Details

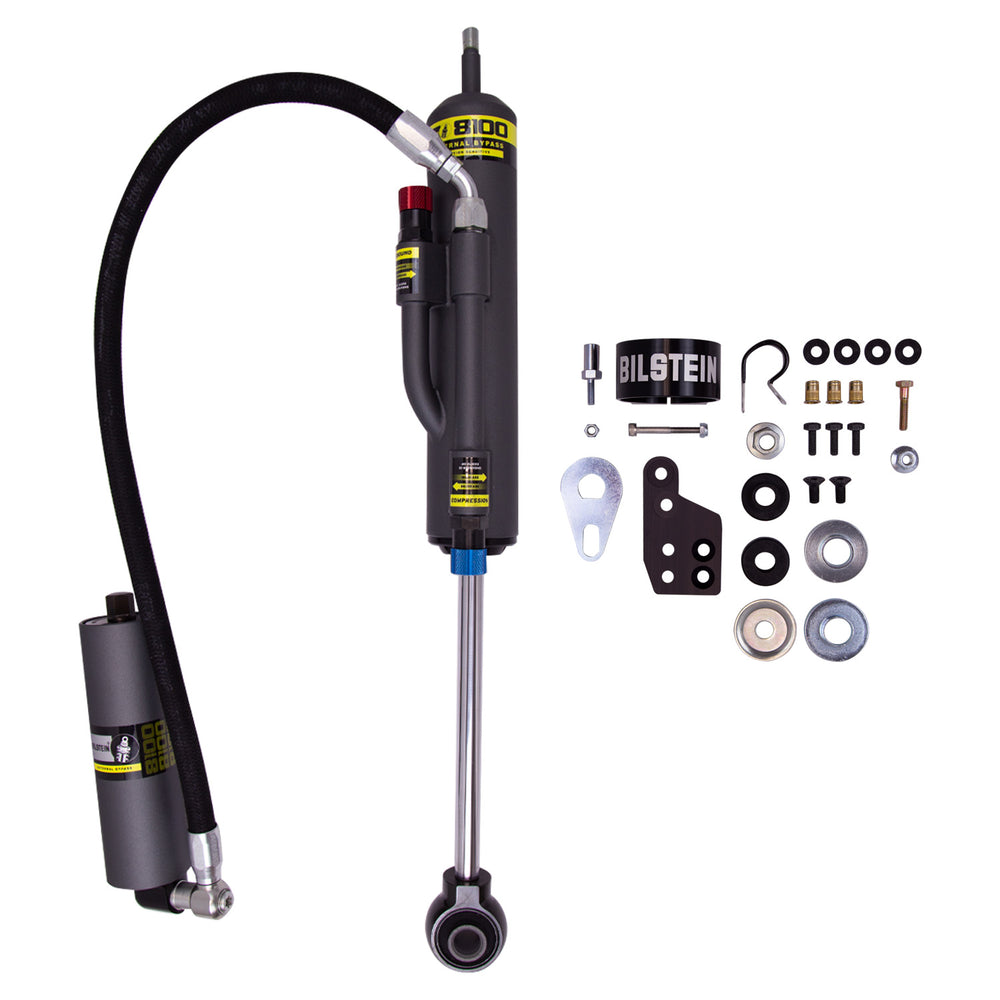

This Bilstein B8 8100 (Bypass) rear shock absorber (24.09-inch extended length) is intended for the 2007-2014 Toyota FJ Cruiser (select trims). A dual tube, externally adjustable bypass design with Incremental Flow adjusters sets rebound and compression in fine steps, and the remote reservoir comes with a bolt-on aluminum chassis mount; the unit is listed as a 60mm shock absorber.

Part number: 25-288162

Bilstein shock absorber.

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle.

Shocks are matched to a ride height range — confirm the lift height on the vehicle before ordering.

Use the vehicle selector to confirm your exact year, cab and bed.

Confirm this fits your vehicle. Use the “Check Fit” selector, or see the Vehicle Compatibility list below for the years, makes and models listed.

Specifications

Manufacturer data for this part — all visible, no tabs to dig through.

BrandBilstein
Part number25-288162
FinishEVO Grey
Warranty24 months (manufacturer)
Shipping carton33.5 × 11.88 × 8.88 in (85 × 30 × 23 cm)
Shipping weight9.9 kg (21.8 lb)
Adjustable dampingDouble Adjustable – Compression and Rebound
ReservoirYes
Internal designMonotube
SeriesB8 8100 (Bypass)
Body designBypass Body (Non-Coilover)
Boot includedNo
Lower mount typeEye 19.25mm
Spring seat includedNo
Piston diameter60 mm
Shaft diameter18 mm
CategorySuspension & Lift
