Product Details

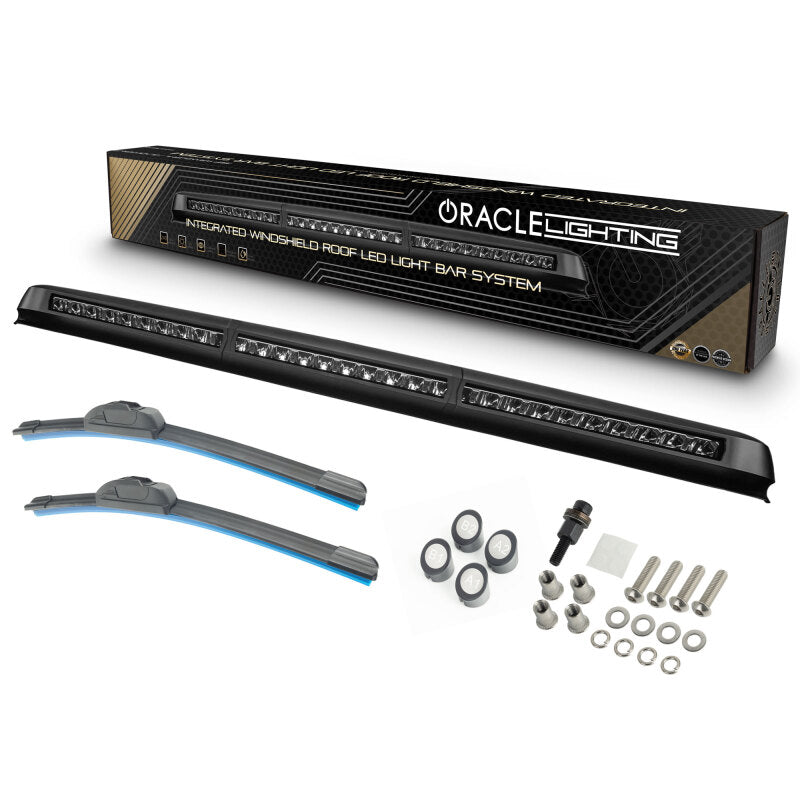

If you are in the market for a high-mount LED Light bar and want to retain an almost factory look, the new ORACLE Integrated LED Light Bar is for you! While other offerings look obviously after-market or like an afterthought, our Patented Integrated design with its molded cowling integrates into the factory roof line of your Jeep. Along with blending in with the factory design, the unique cowl design also provides a quieter and more aerodynamic installation compared to traditional LED light bar setups. The polycarbonate housing is designed to match the styling of the factory hardtop. The light bar features reflector-facing LED technology so if it does not look like a traditional light bar that's because it's not. This reflector system is designed to provide optimized LED light output from the 30 individual 8W LED emitters creating at total of 18,000 raw lumens and a projection distance of over 600 meters. As an added bonus, the system features selectable Amber or White clearance lights. You can select to connect these lights to an Aux Switch, Parking Lights, DRL, or just leave them disconnected if you prefer not to have the clearance light feature on your Jeep.

Features

  • Tool Included for Installation of Threaded Inserts
  • Under/Over Voltage and Reverse Polarity Protection
  • High-Powered Lighting 30x 8W LED Main Light
  • Selectable Amber or White Clearance Lights
  • Waterproof Rating: IP68 Ingress Protection
  • Precision LED Reflector-Facing Technology
  • Innovative and Integrated Patented Design
  • Reflector Material: Plated Polycarbonate
  • Stainless Steel Anti-Fog Breather Valves
  • Effective Lumen Light Output: 14,200LM
  • Outer Housing Material: Polycarbonate
  • Aerodynamic Integrated Housing Design
  • Lamp Housing Material: 6030 Aluminum
  • Lens: Material: Lexan Polycarbonate
  • Max Projection Distance: 1Lux@648M
  • Lamp Finish: Polyester Powder Coat
  • Molded IP68 Waterproof Connectors
  • Innovative Patent-Pending Design
  • Raw Lumen Light Output: 18,000LM
  • Electronic Thermal Management
  • Beam Angle: 40° Driving Beam
  • Total Amp Draw: 14A @12V DC
  • Peak Intensity: 420,000CD
  • Total Wattage: 240 Watts
  • Color Temperature: 5500K

Listed for 2 vehicles: the fitment table on this page shows each year, make and model it fits.

Confirm this fits your vehicle. Use the “Check Fit” selector, or see the Vehicle Compatibility list below for confirmed years, makes and models.

Specifications

Manufacturer data for this part — all visible, no tabs to dig through.

BrandOracle
Part numberORL5917-023
CategoryLighting & Electrical
Oracle Jeep Wrangler JL/Gladiator JT In...
ORL5917-023
