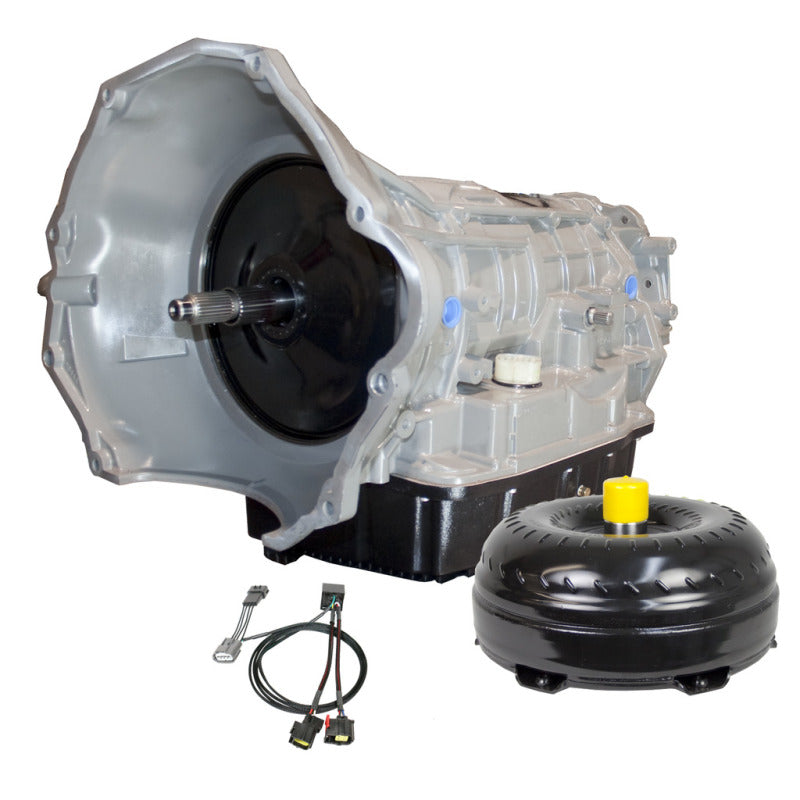

Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Features

• BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• TCC limit valve machined and sleeved to address high wear area with in pump
• Billet forged front cover with thicker walls and stronger mounting pads
• Hard anodized valve body and new solenoid pack installed in every unit
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• Over Drive clutches 33% increase & 2C clutches 33% increase
• Heavy duty cam & roller design low reverse one way clutch
• Ideal replacement for stock torque converter
• Lower rpm response than the stock converter
• Great for street and towing applications
• High performance Enhanced stall stator
• Upgraded Governor Pressure Transducer
• Custom Big Stack overdrive shaft
• Torque Convertor Enhanced Stall
• BD reinforced accumulator plate
• New 4C billet spring retainer
• No Shuttle Shifting Problems
• Stamped Forged 1 Piece Cover
• Upgraded Governor Solenoid
• More Efficient Operation
• Good for 550 flywheel HP
• Damper springs replaced
• 11.625 inch dual-clutch
• No Race Abuse Covered
• Upgraded Valve body
• Furnace Brazed Fins
• PROFORCE CONVERTER:
• Aluminum HD Pan
• TRANSMISSION:
