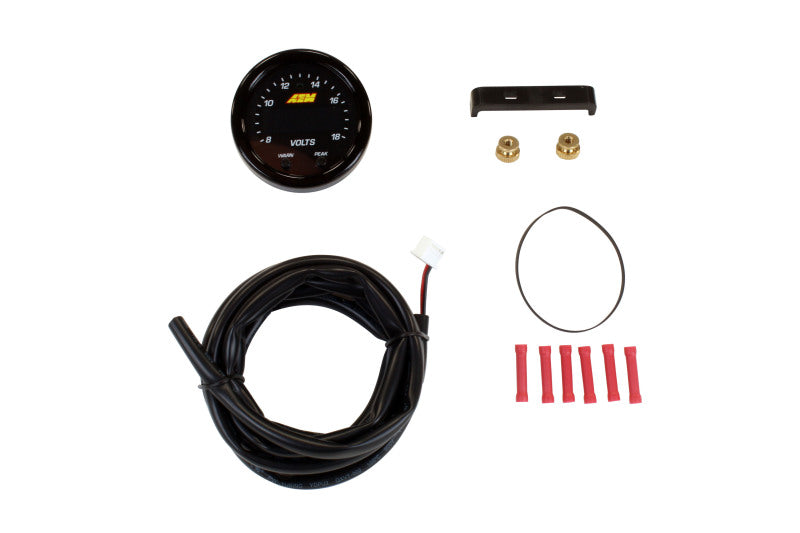

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall on the Volts gauge. All X-Series gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

Features

• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• Optional silver bezel with white faceplate accessory kit available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• 24 green outer LEDs for quick reference to system voltage
• Programmable LED is 87% larger than original AEM gauges
• Positive locking connectors provide secure connection
• Auto dimming sensor delivers ideal display brightness
• Peak/Recall via gauge face buttons

A gauge gives the driver a live reading of a vehicle or engine condition, such as pressure, temperature, fuel level, voltage or boost, so it can be monitored from the driver's seat.
