ICON Vehicle Dynamics suspension lift kit.

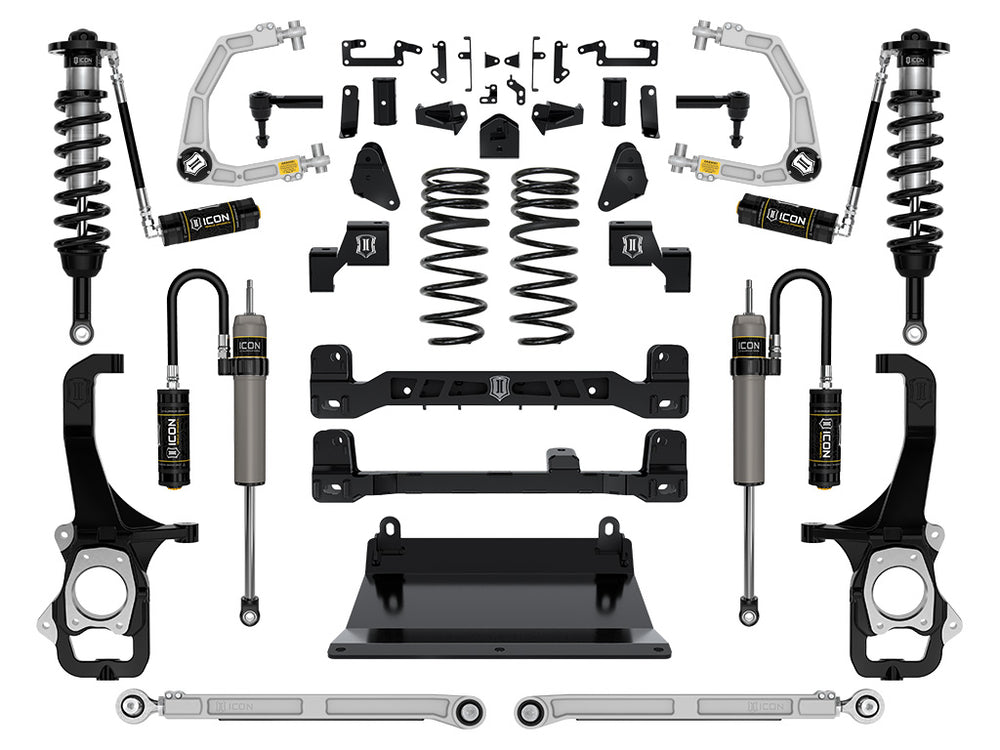

The ICON Vehicle Dynamics Stage 5 6" Suspension System represents the pinnacle of performance and capability for the 2022-2026 Toyota Tundra, combining race-inspired suspension technology with advanced geometry and heavy-duty components engineered for the most demanding environments. Vehicle-specific tuned 2.5 Series front coilovers and rear shocks with remote reservoirs deliver exceptional damping control, increased fluid capacity, and improved heat dissipation for consistent performance during extended high-load off-road use. The system provides up to a 40% increase in front wheel travel over stock without overstressing OE components and features adjustable front ride heights from 5-6 inches of lift. 10,731,700) provide superior strength, exceptional durability, 90 degrees of total articulation, and on-vehicle caster and camber adjustment for precise alignment and optimum drivability. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. ICON-engineered custom triple-rate rear coil springs provide progressive spring rates for a compliant ride on the street while delivering the stability and control required during aggressive off-road driving. Featuring ICON's double adjuster system, the rear lower links allow on-vehicle adjustment for different ride heights and pinion angles, providing precise suspension tuning without removal. The result is ICON's most advanced Tundra suspension system, delivering exceptional ride quality, maximum articulation, and uncompromising off-road performance with the clearance to run 37-inch tires at full articulation.

A suspension lift raises ride height to clear larger tires; component kits vary in what they include, so check the parts list.

Use the vehicle selector to confirm your exact year and configuration.
